EQUIPMENT DETAILS

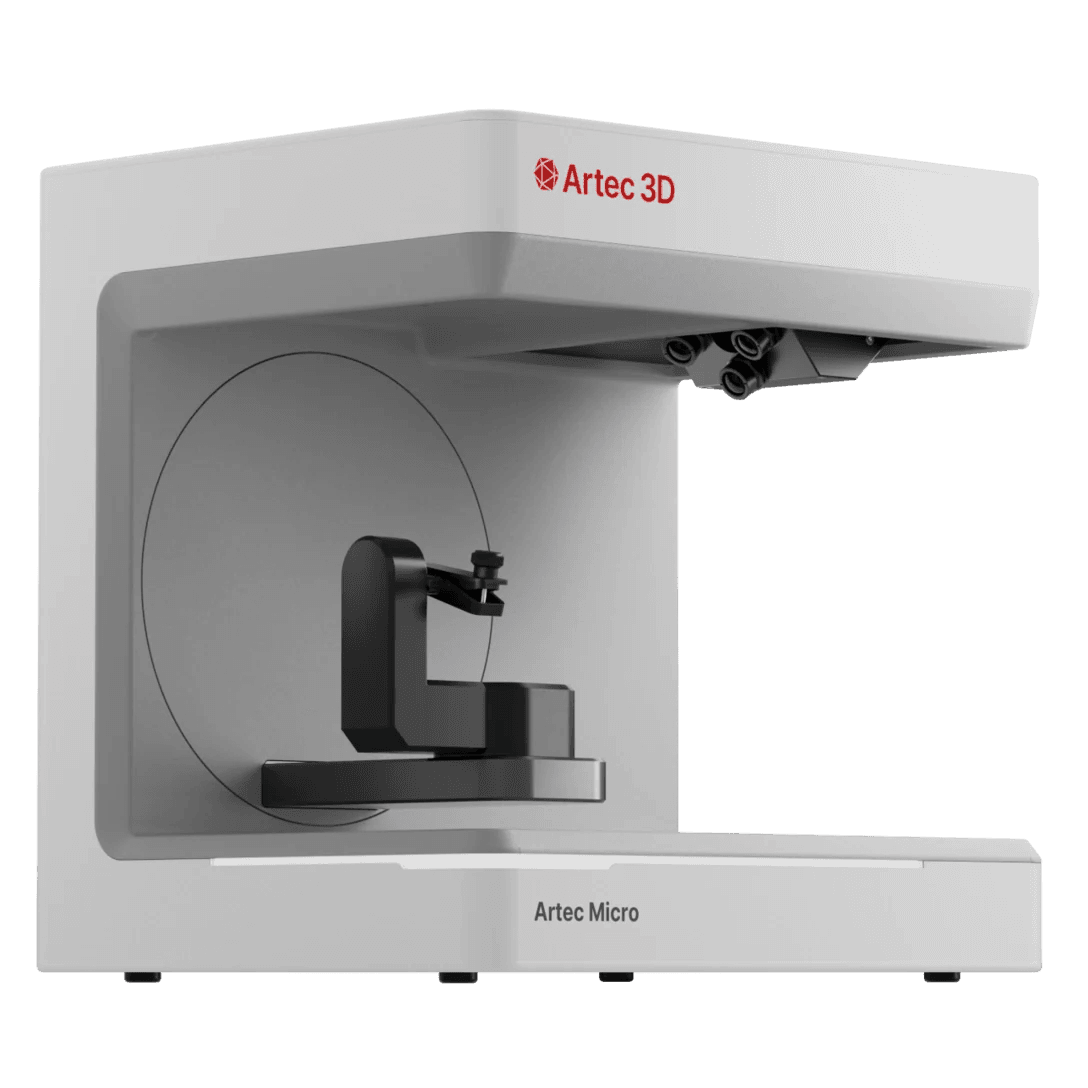

Automated Desktop 3D Scanner with 5-Micron Accuracy

Artec Micro II is a fully automated desktop 3D scanner engineered for high-precision digitization of small objects. Designed for professional reverse engineering and quality inspection workflows, Micro II delivers metrology-grade performance with up to 5-micron accuracy and 2-micron repeatability, making it ideal for scanning industrial components, dental items, jewelry, and other fine-detail objects.

Compact, powerful, and effortless to operate, Micro II transforms desktop 3D scanning into a one-click process.

Key Advantages

Metrology-Grade Accuracy
• 3D point accuracy: up to 5 microns
• Repeatability: 2 microns
• ISO 12836 accuracy certification
• Designed for inspection-grade measurements

Micro II ensures consistent, highly accurate results across multiple scans.

Fully Automated 1-Click Workflow

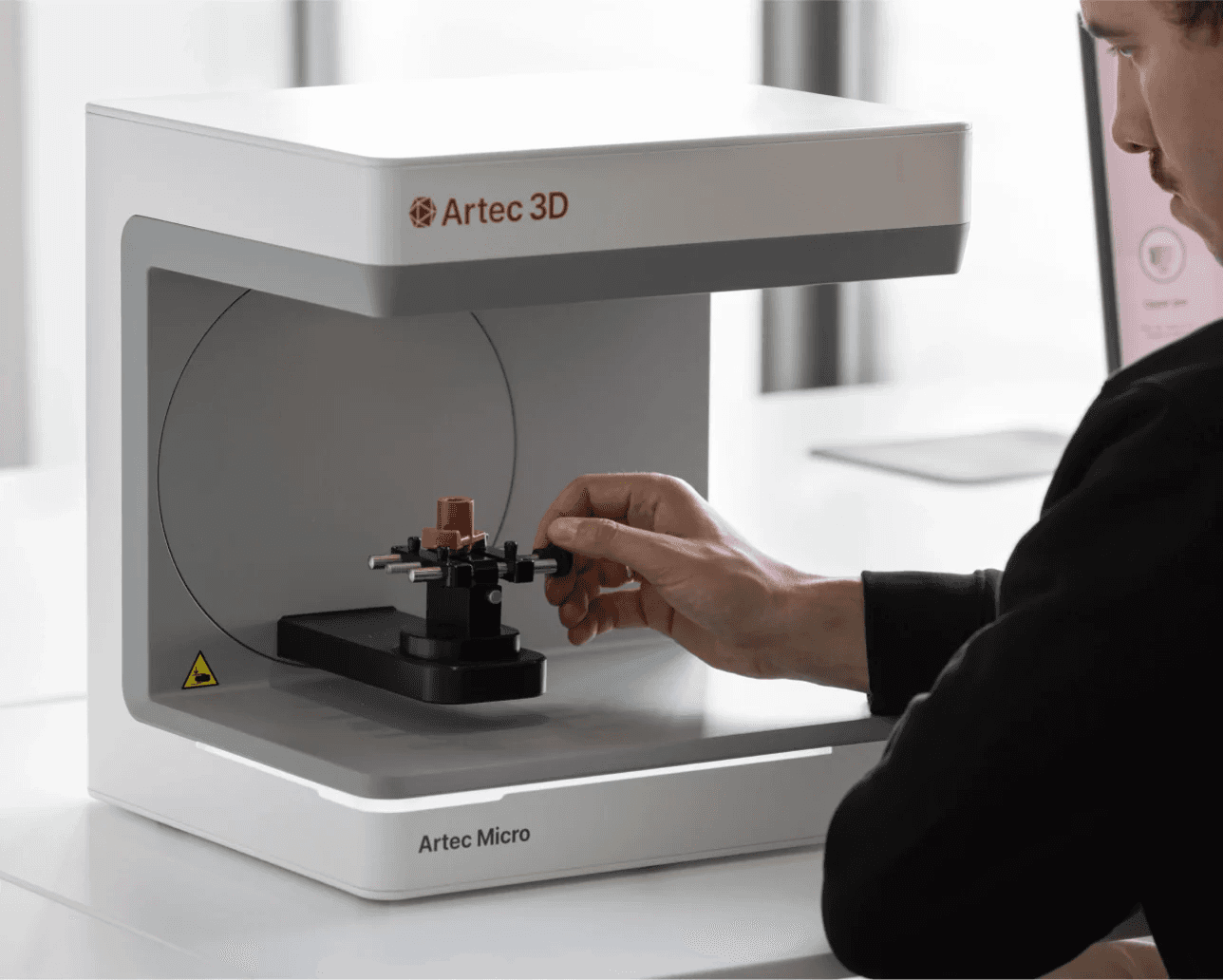

Simply place your object inside the scanning chamber and press start.
Micro II automatically:

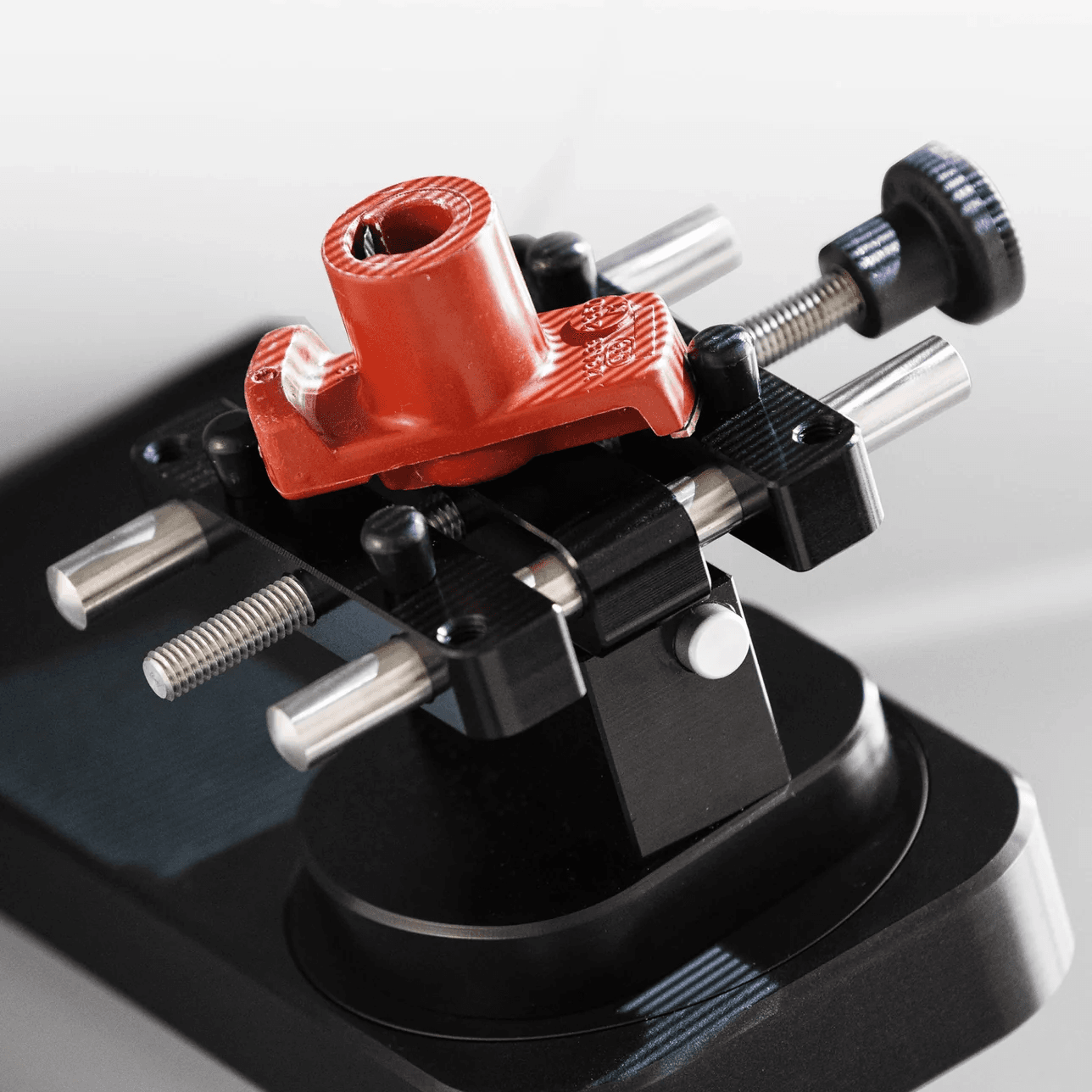

• Positions the object along an optimal trajectory
• Captures full 360° coverage
• Processes data with smart algorithms in Artec Studio

No targets, no manual repositioning, no complex setup.

Designed for Small & Tiny Objects
• Maximum object size: 20 × 20 × 15 cm

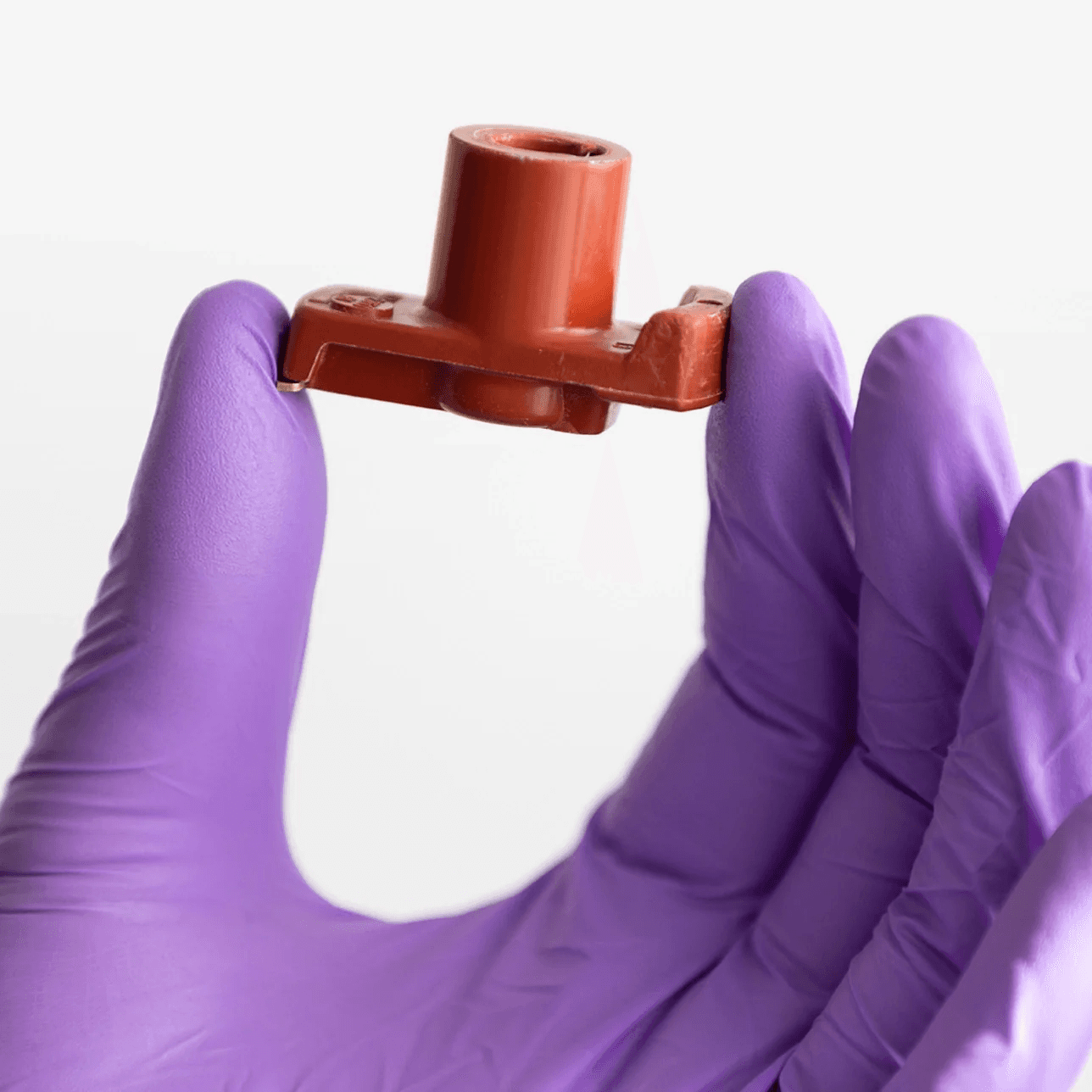

• Ideal for parts you can hold in your hand or smaller
• 3-axis scanning system
• Volume capture: 6000 cm³

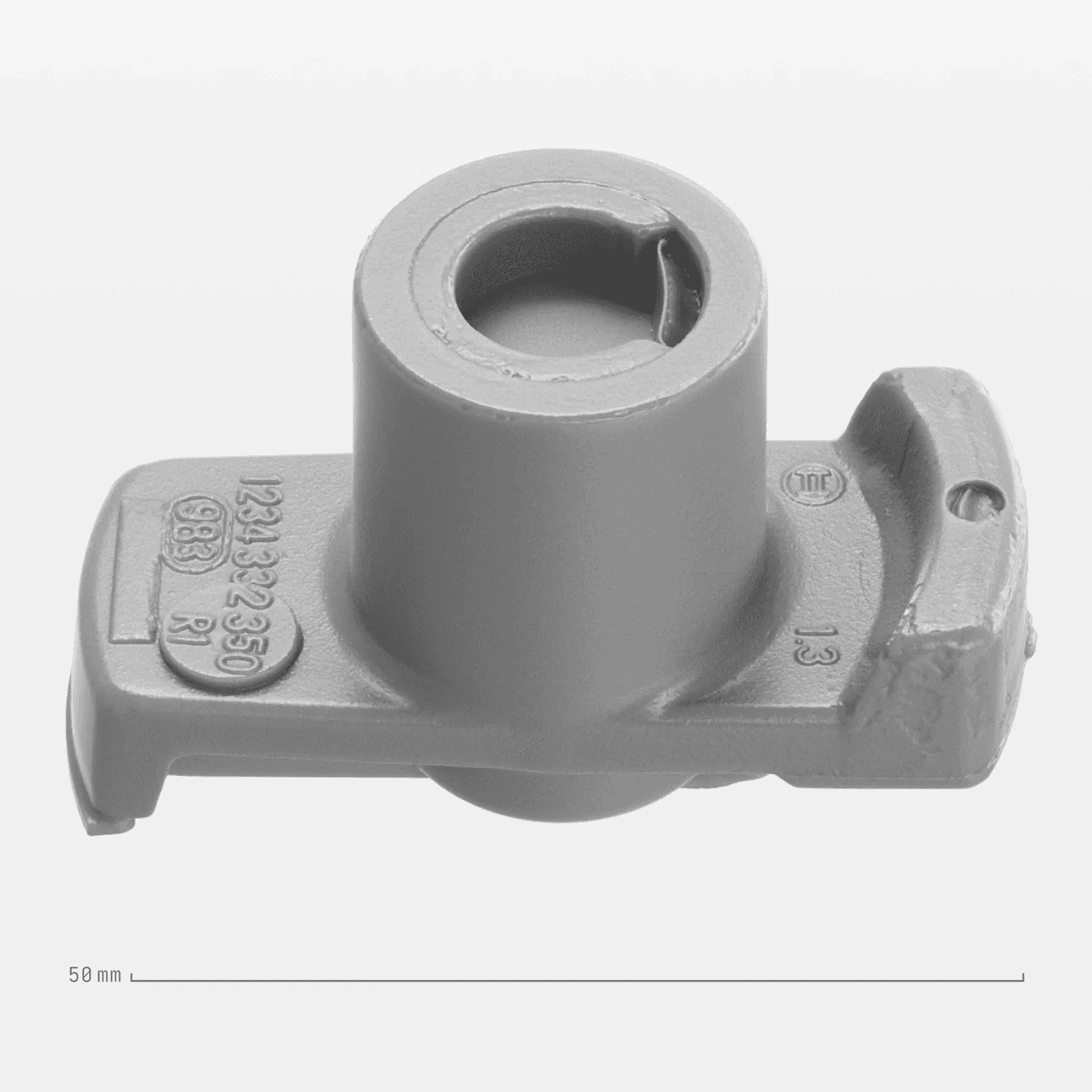

From delicate components to intricate mechanical parts, Micro II captures every detail.

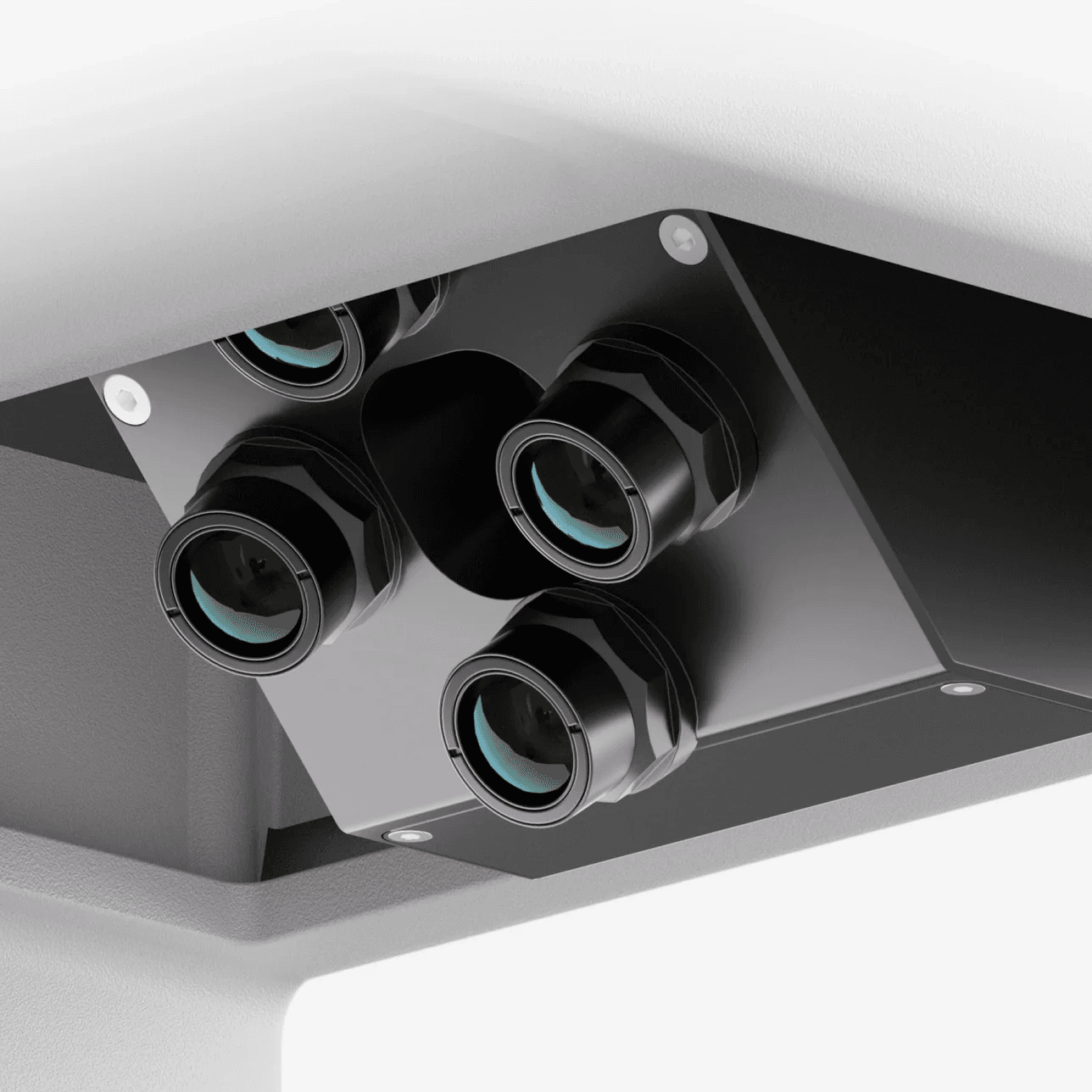

Quad-Camera Precision
• 4 × 13 MP high-resolution cameras
• Deep-view scanning for hard-to-reach areas
• Excellent edge and fine-feature capture

Even sharp edges, small engravings, and complex geometries are digitized with clarity.

Full-Color Capture
• Native texture capture
• 24 bpp color
• Optional phototexture enhancement in Artec Studio

Create realistic, presentation-ready 3D models directly from your desktop.

Fast Data Processing
• Up to 1 million points per second
• Smart Scanning Mode

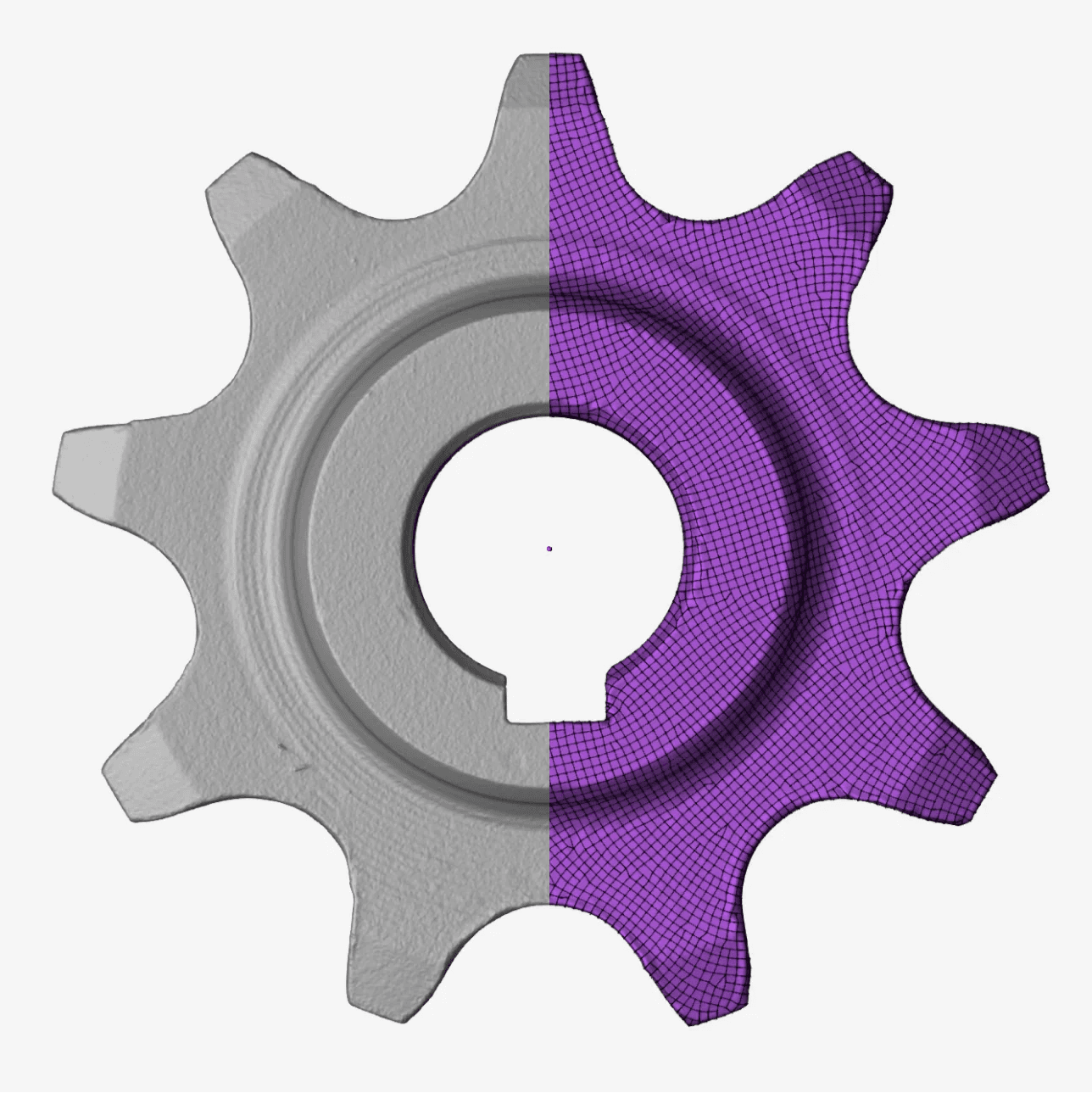

• Direct inspection and reverse engineering inside Artec Studio

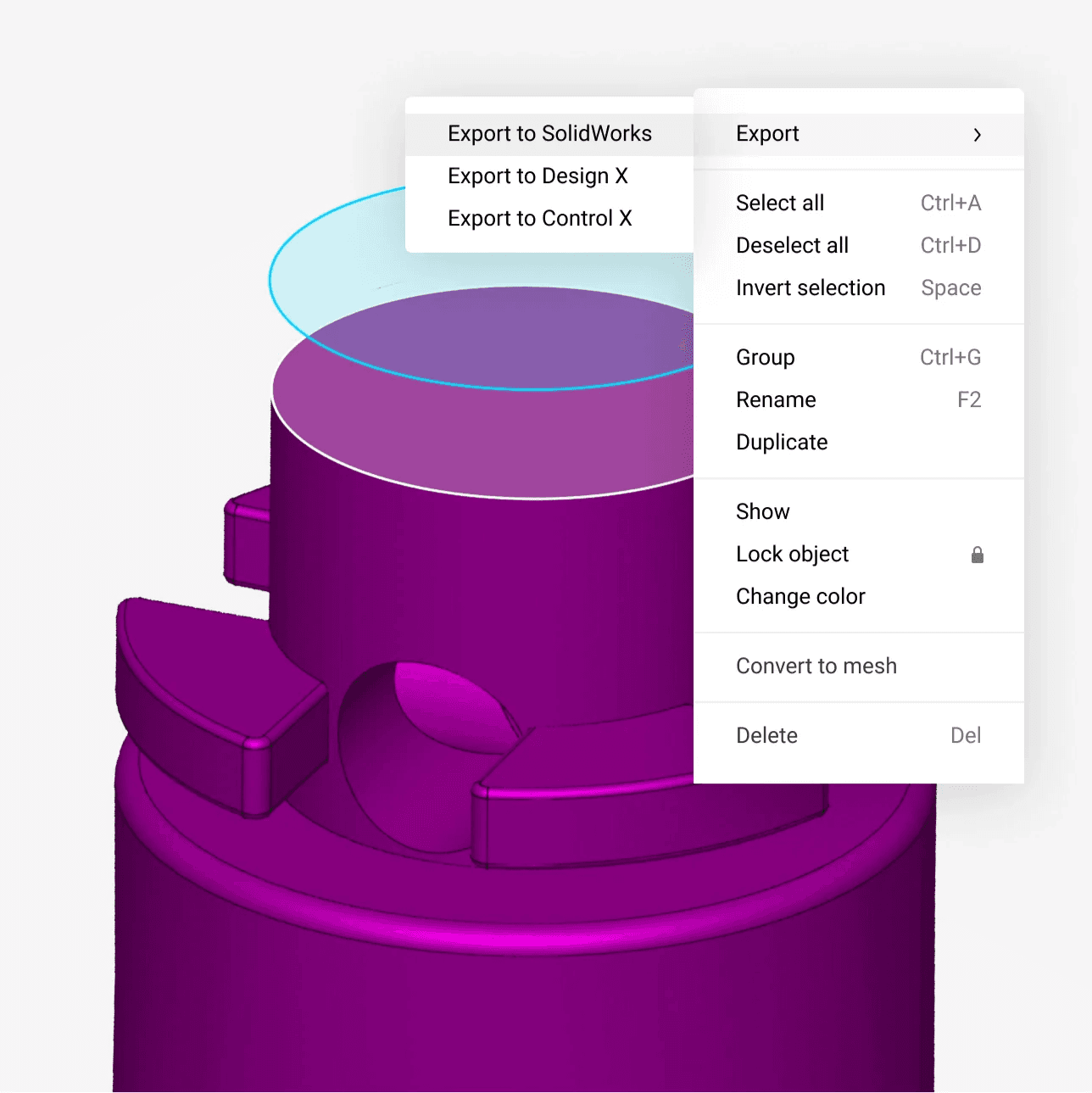

• Seamless Scan-to-CAD export

Export directly to:
• SOLIDWORKS
• Geomagic Design X
• Control X
• STEP, IGES, X_T
• STL, OBJ, PLY, E57 and other formats

Applications

Artec Micro II is ideal for:
• Reverse engineering small parts
• Quality inspection
• Forensics (evidence digitization)
• Dentistry

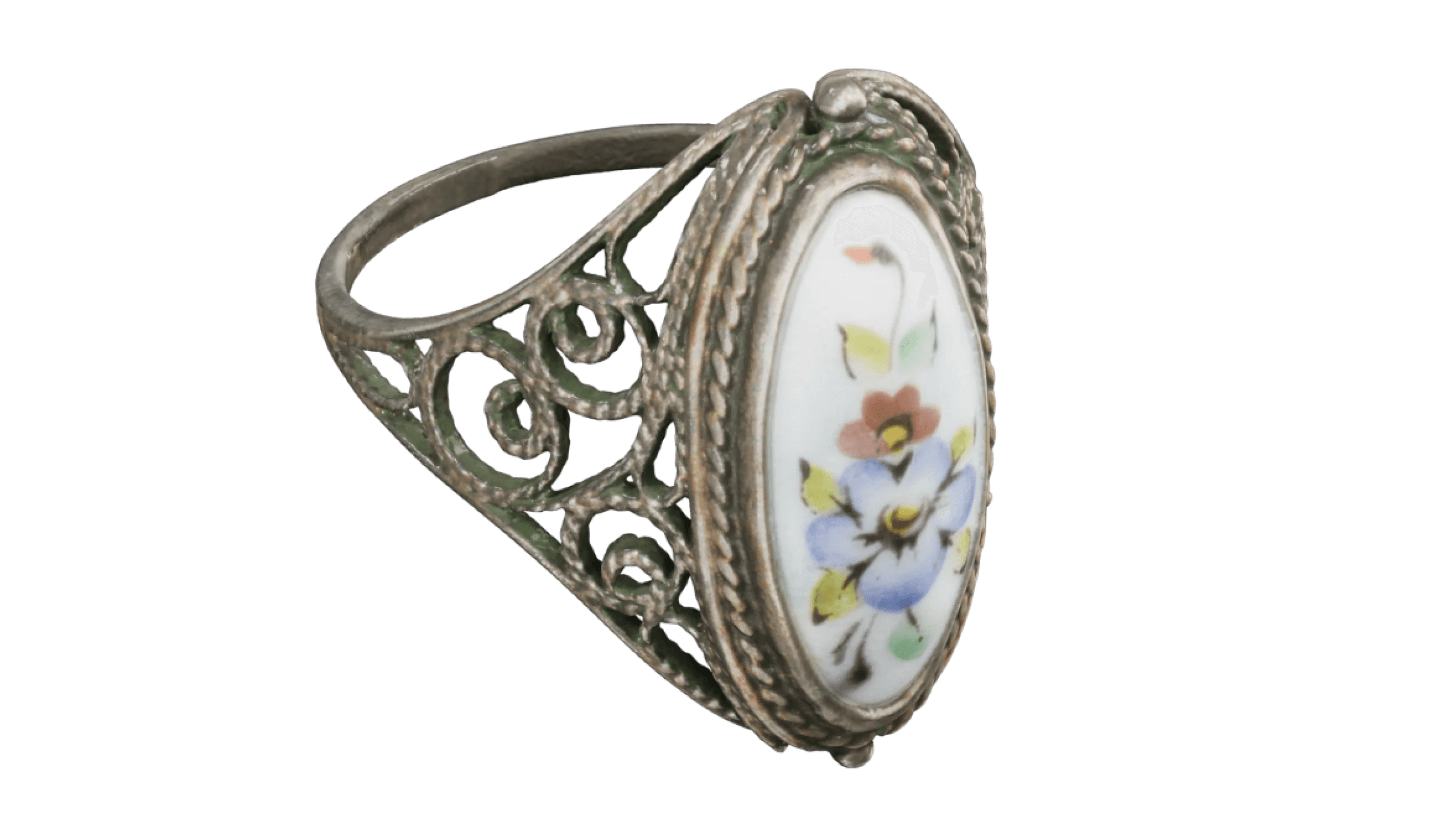

• Jewelry design
• Archaeology & heritage preservation
• Industrial product development

Technical Overview
• Scanner type: Automated desktop
• Accuracy: 5 microns (2-micron repeatability)
• Accuracy certification: ISO 12836
• Object size: up to 20 × 20 × 15 cm
• Cameras: 4 × 13 MP
• Light source: RGB LED
• Interface: USB 3.0
• Dimensions: 396 × 405 × 337 mm
• Weight: 12 kg
• Supported OS: Windows 10/11 (x64)
• Warranty: 2 years

Scanning does not require targets. A computer is required only for data processing.

Why Choose Artec Micro II?

✔ True metrology-grade desktop scanner
✔ 5-micron accuracy for small parts
✔ Fully automated one-click operation
✔ ISO-certified measurement precision
✔ Quad-camera deep-view technology
✔ Seamless integration with Artec Studio
✔ Perfect for inspection & reverse engineering
